5000SBFS

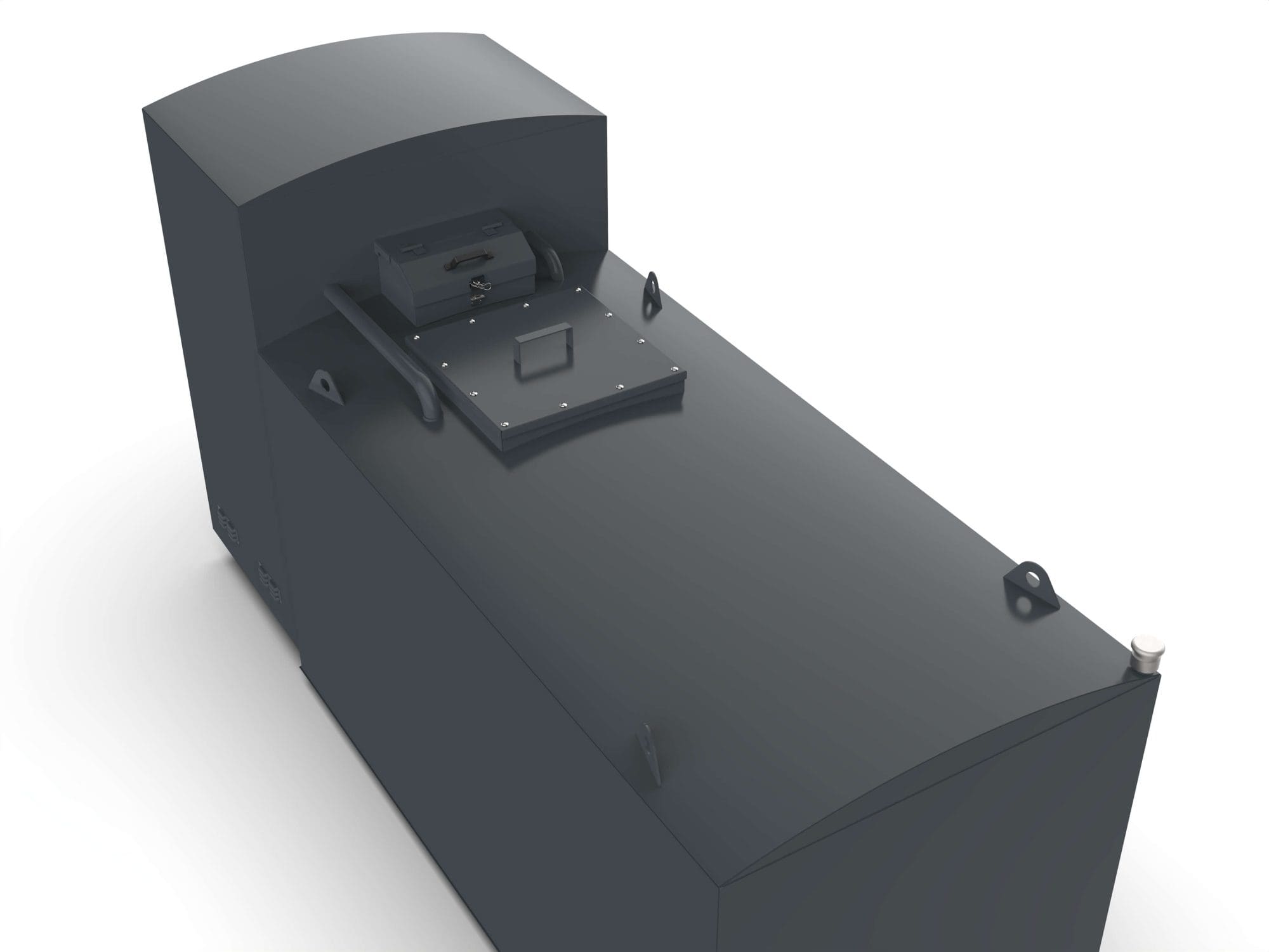

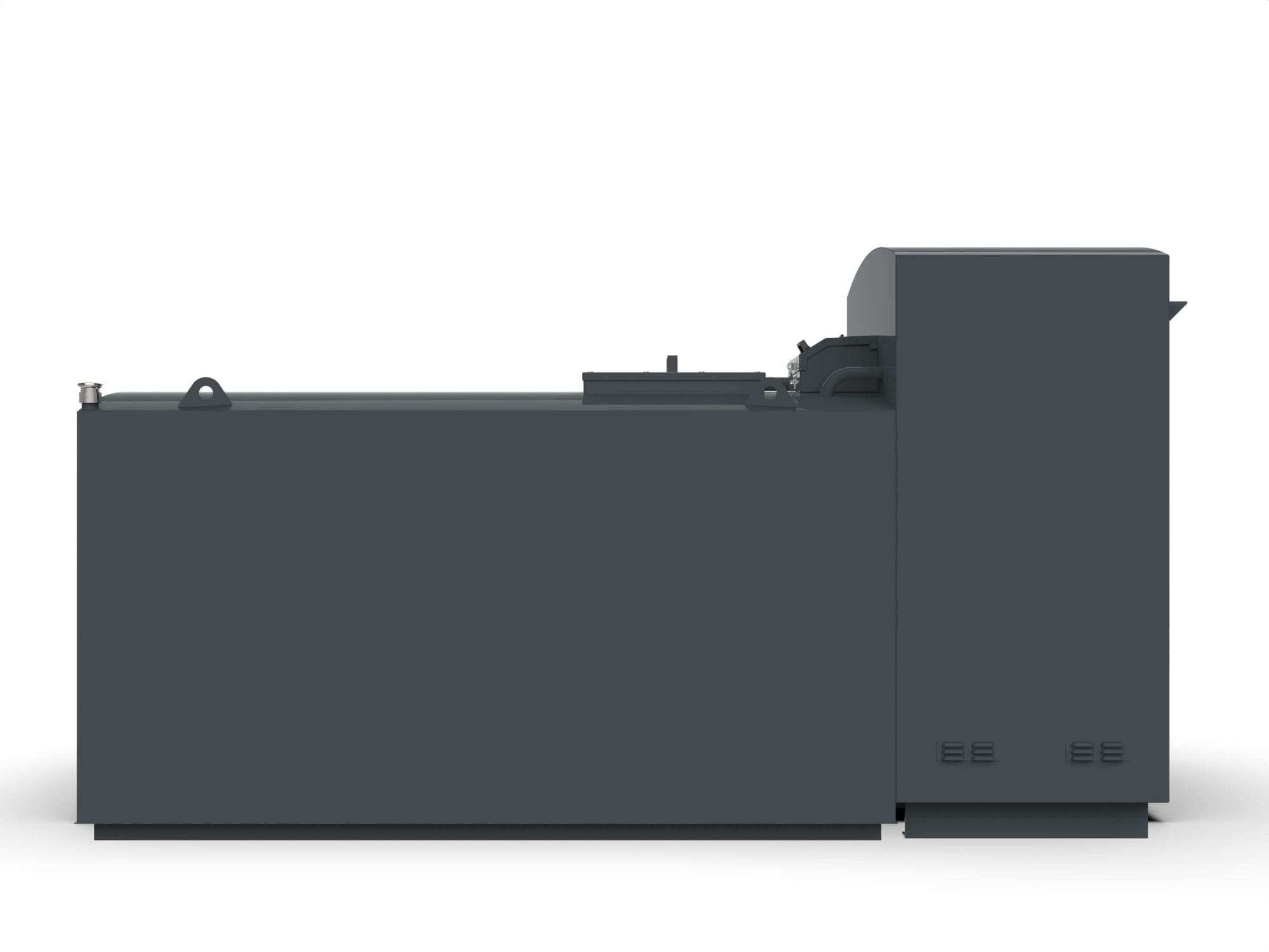

5000 Litre Steel Bunded Diesel Tank

Our 5,000-Litre steel bunded diesel tank is our smallest steel diesel dispenser.

These tanks are manufactured in a strong mild steel, which is extremely durable, weather-resistant with high impact strength.

As standard our 5,000-Litre steel bunded diesel tank is fitted with tier-one ancillary equipment stored within a walk-in high-security cabinet. This provides a self-contained, low-maintenance unit that simply requires a flat concrete base and final electrical connection.

Our steel diesel tank is manufactured in mild steel by our highly skilled team of welders.

Unlike many other tanks on the market, our tanks are fully bunded providing an extremely durable and safe diesel dispenser.

Optional extras and upgrades are also available.

When correctly installed, maintained and used this tank will give you an expected lifespan well in excess of 20-years and a 10-year guarantee, when registered.

If you need help finding what you’re looking for, don’t hesitate to contact our friendly sales team for more information, advice, quotations, or more information on our exclusive discounts on trade prices.

Optional Extras*

add to quote

add to favourites

Up to 10 Year Warranty

5000 Litre Steel Bunded Diesel Tank Dimensions

Capacity (Ltrs) 5194
Length (mm) 4000
Width (mm) 1500
Height (mm) 2500
HVO Compatible Yes
Material Steel

specification

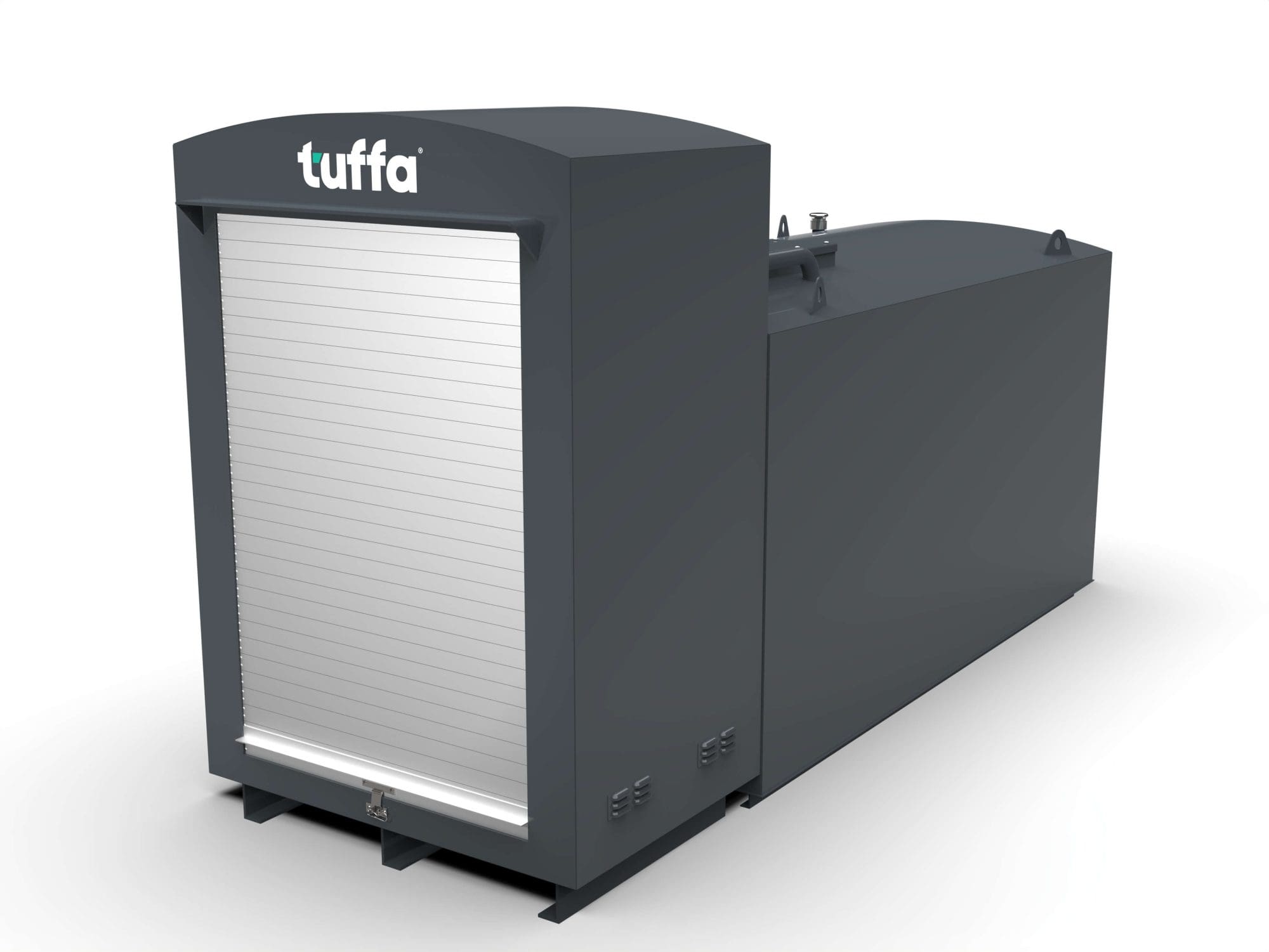

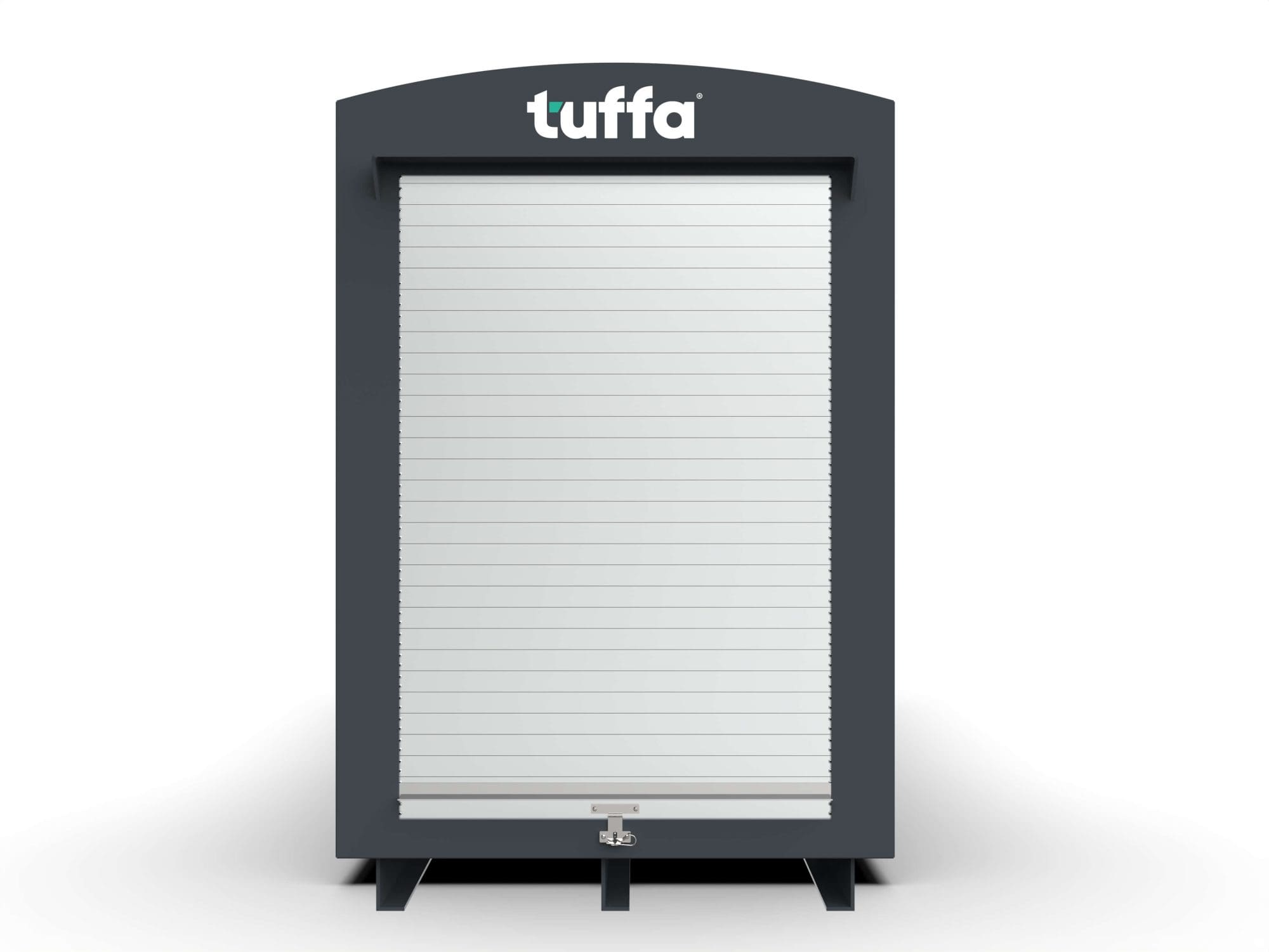

1m full-end cabinet with roller shutter door
2” fill point
Overfill prevention valve
Vent
2 x 2″ spare sockets
2 x 1″ spare sockets
4 x aluminium louvre vents
External pump (230v)
6m x 3/4″ delivery hose
Automatic nozzle with nozzle holster
K44 pulse meter
10 micron water & particulate filter
C2020 contents gauge with bund alarm (230v)
Cable tray
Control panel
PIR light
Channel runners
4 x lifting eyes

key benefits

Forecourt-style dispensing and convenience
Fitted with premium ancillary equipment
Bunded in accordance with Oil Storage Regulations
Made from mild steel which is very strong and durable
Greater versatility with a range of optional extras available to customise the tank for your site requirements
Lockable cabinet prevents theft
Design life in excess of 20 years
10 year warranty when registered
Compatible with HVO fuel and HVO diesel blends

options

Hose reel – a self-retracting hose reel with 10m delivery hose.
Pump options – higher flow rate pumps available.
Fuel management system – fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
Bare tank – 1.5″ top suction line terminating low level in cabinet with anti-siphon valve. Additional top suction line available. This replaces dispensing equipment including the pump, hose & pulse meter.
