2300SBFP

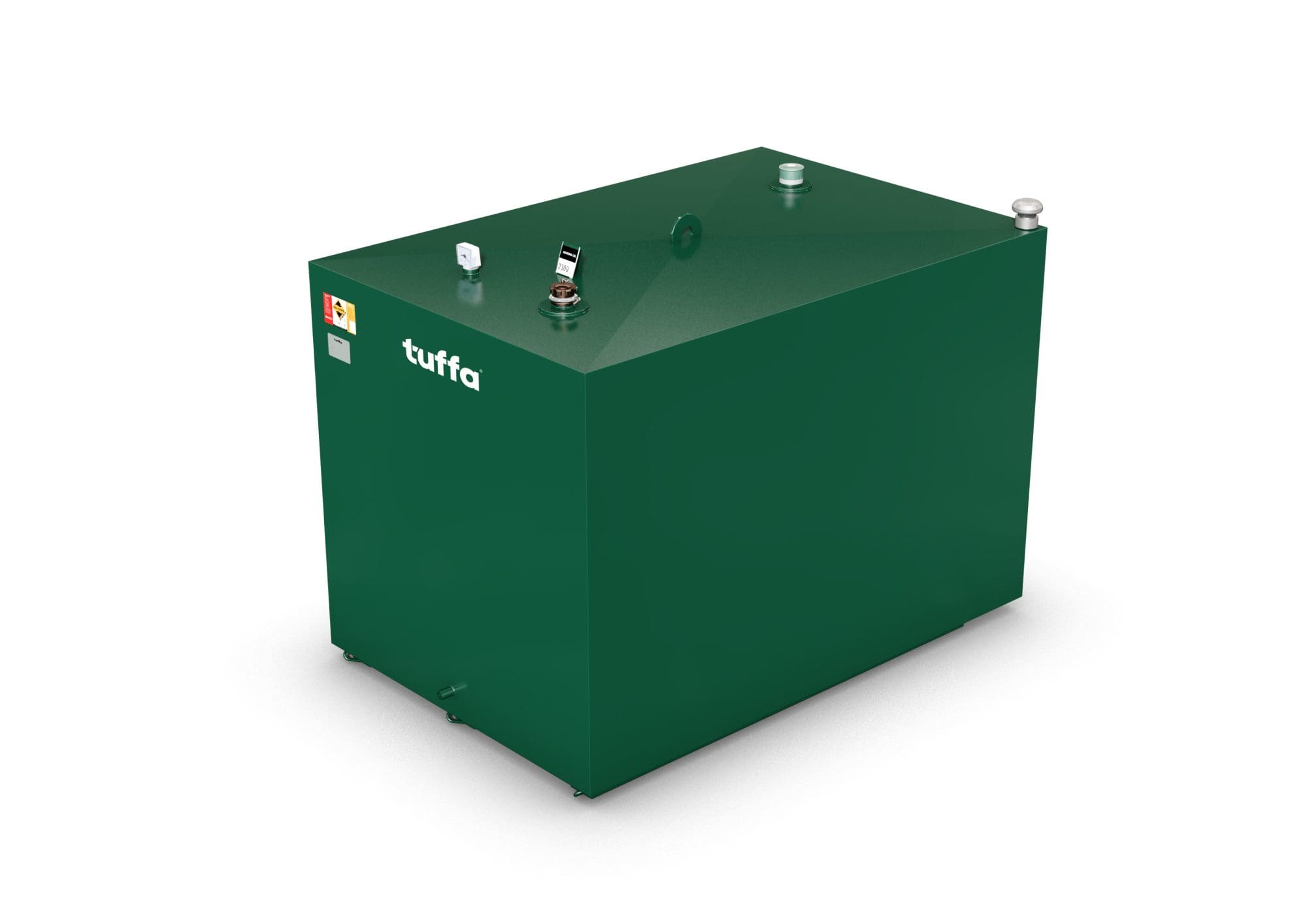

2300 Litre Steel Bunded Fire Protected FirePro® Oil Tank

Our Tuffa 2300 Litre fire-protected heating oil tanks are manufactured on-site from a high quality, durable mild steel, providing a long-term, affordable heating oil storage solution.

The FirePro® range enables you to save valuable outside space and hide your tank away behind or even inside outbuildings. It offers a perfect solution to replace old tanks which are sited within 1.8m of buildings and structures and are incompliant with modern regulations and provides an alternative form of compliance to constructed fire barriers without the need for additional building work.

Browse our FirePro® range (1000-2,440 Litres)

Options *

add to quote

add to favourites

Up to 10 Year Warranty

2300 Litre Steel Bunded Fire Protected FirePro® Oil Tank Dimensions

Capacity (Ltrs) 2325
Length (mm) 1800
Width (mm) 1200
Height (mm) 1680
HVO Compatible Yes
Material Steel

specification

Fire protection
2″ BSP fill point complete with cap and chain
Overfill prevention valve
Vent
1” BSP bottom outlet
Manual float level gauge
Electronic Watchman Sonic gauge
Central lifting eye
Channel runners
Tank fittings kit (1”-1/2″ adaptor, ball valve and filter)
Painted in RAL 6005 Green

*Height includes runners and fittings on top of the tank.

key benefits

Effortless Install: Fits prefab concrete bases, needs just 6 slabs (4 at 900mm x 600mm, 2 at 600mm x 600mm).
Quality Build: Precision craftsmanship, high-quality build and paint finish for durability and aesthetics.
Space-Saver: Compact design optimises space without sacrificing capacity.
Premium Material: Made from durable mild steel for longevity.
Regulation-Compliant: Minimum 110% bund capacity for enhanced safety.
Ready-to-Use: Pre-fitted with premium ancillary equipment.
Longevity: Design life exceeds 20 years.
Guaranteed: 10-year guarantee upon registration.
Weatherproof: Engineered to withstand all conditions.
Fuel Flexibility: Compatible with HVO fuel and HVO kerosene blends.

options

Fire Protection: 30 minute or 60 minute.
Top Outlet – Tanktop 10mm top outlet.
Bottom outlet – 1″ bottom outlet.

product pdfs

additional information

These bunded kerosene tanks are fabricated with an outer tank (bund) and primary inner tank. All of our fire protected tanks have an integral bund fitted as standard to protect against spillage and overfilling.

The integrally fire rated system meets the functional requirements of Building Regulations and is suitable for domestic and commercial use.

who can install and certify a fire rated oil tank?

Tuffa has partnered with national building control company Stroma and our FirePro® range can be signed off remotely using a simple process. Find out more on our Guide to FirePro sign-off here.

We work with installers across the UK and in most cases can recommend someone in your area. Alternatively, we recommend an installer from APHC’s Competent Persons Scheme for our fire protected tanks. Find an APHC installer here.

For those seeking in-depth insights into fire-protected oil tanks, our expert guide is readily available. Whether you require guidance on fire protection guidelines, installation procedures, or selecting the most suitable tank for your specific needs, our comprehensive resource is designed to provide valuable assistance.

If you need help finding what you’re looking for, don’t hesitate to contact our friendly sales team for more information, advice, quotations, or more information on our exclusive discounts on trade prices.
