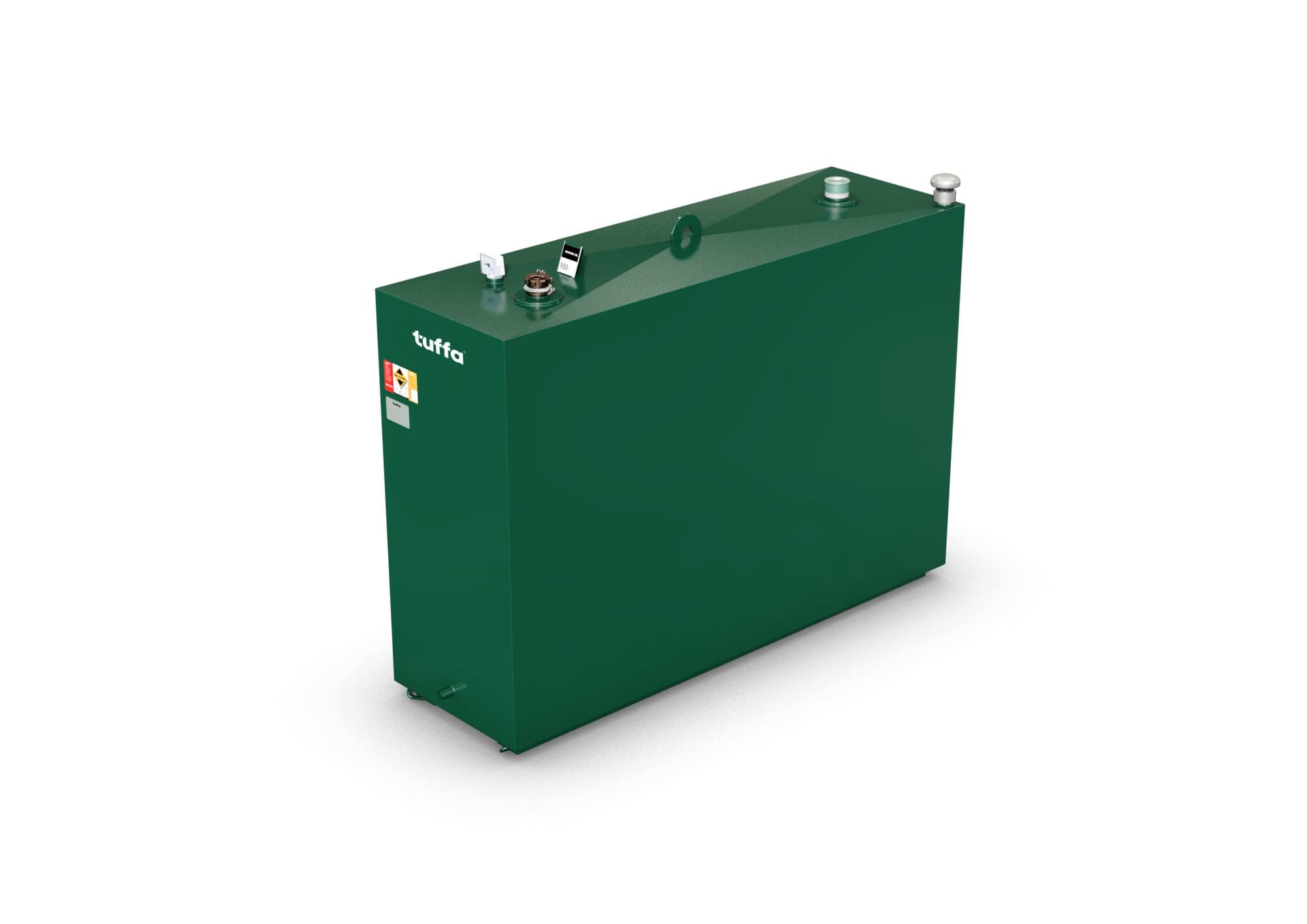

1000 Litre Steel Bunded Heating Oil Tank

specification

• 2″ BSP fill point complete with cap and chain
• Vent
• Manual float level gauge
• 1″ BSP bottom outlet
• 2″ BSP spare socket
• Overfill prevention valve

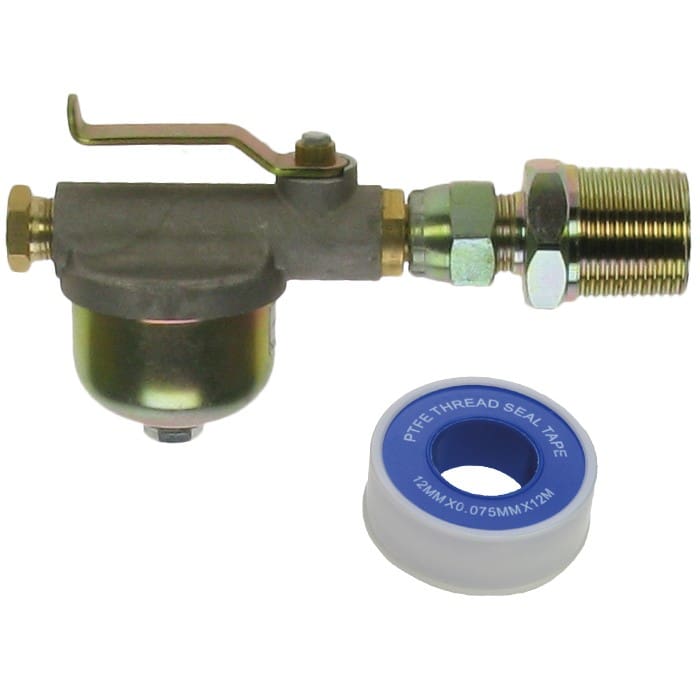

• Tank fittings kit (1″-1/2″ adaptor, ball valve and filter)
• Channel runners
• Central lifting eye
• Painted in RAL 6005 Green

*Height includes runners and fittings on top of the tank.

key benefits

• Effortless Install: Fits prefab concrete bases, needs just 6 slabs (4 at 900mm x 600mm, 2 at 600mm x 600mm).
• Quality Build: Precision craftsmanship, high-quality build and paint finish for durability and aesthetics.
• Space-Saver: Compact design optimises space without sacrificing capacity.
• Premium Material: Made from durable mild steel for longevity.
• Regulation-Compliant: Minimum 110% bund capacity for enhanced safety.
• Ready-to-Use: Pre-fitted with premium ancillary equipment.
• Longevity: Design life exceeds 20 years.
• Guaranteed: 10-year guarantee upon registration.
• Weatherproof: Engineered to withstand all conditions.
• Fuel Flexibility: Compatible with HVO fuel and HVO kerosene blends.

options

• Watchman Sonic – an electronic oil level sensor which remotely monitors the level of fuel in the tank.

• Fire protection – 30 minute | 60 minute options available for domestic and non-domestic applications. Browse the Fire Protected Oil Tank range.
• Tanktop – 10mm top outlet available as an alternative to the 1″ bottom outlet.
• Bottom outlet bare tank – 2x 2″ spare sockets, 1x 1.5″ spare socket and 1″ bottom outlet only.

product pdfs

• Tank Drawing - 1000 Bunded
• Oil Tanks Product Guide
