15000VBFS

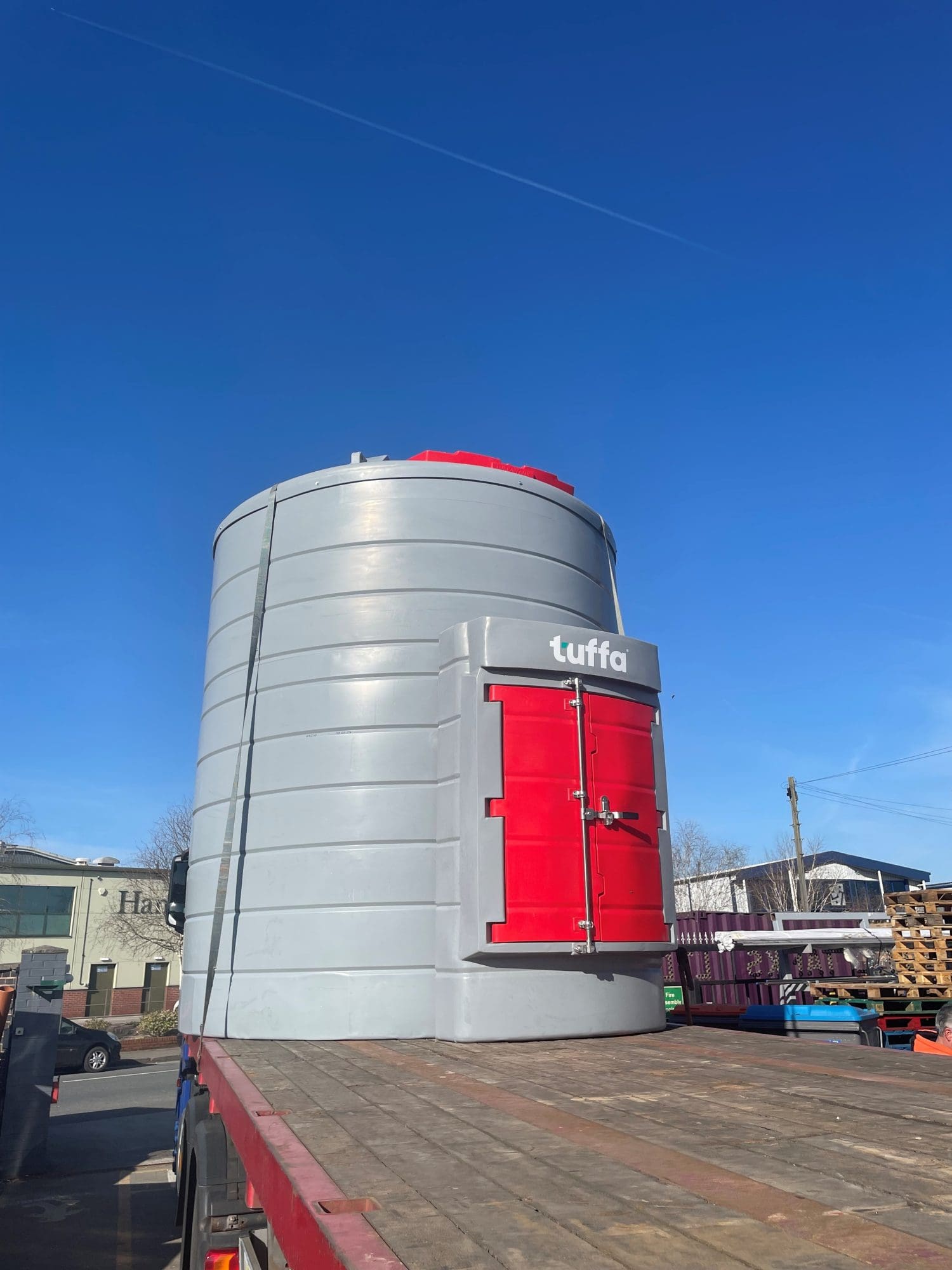

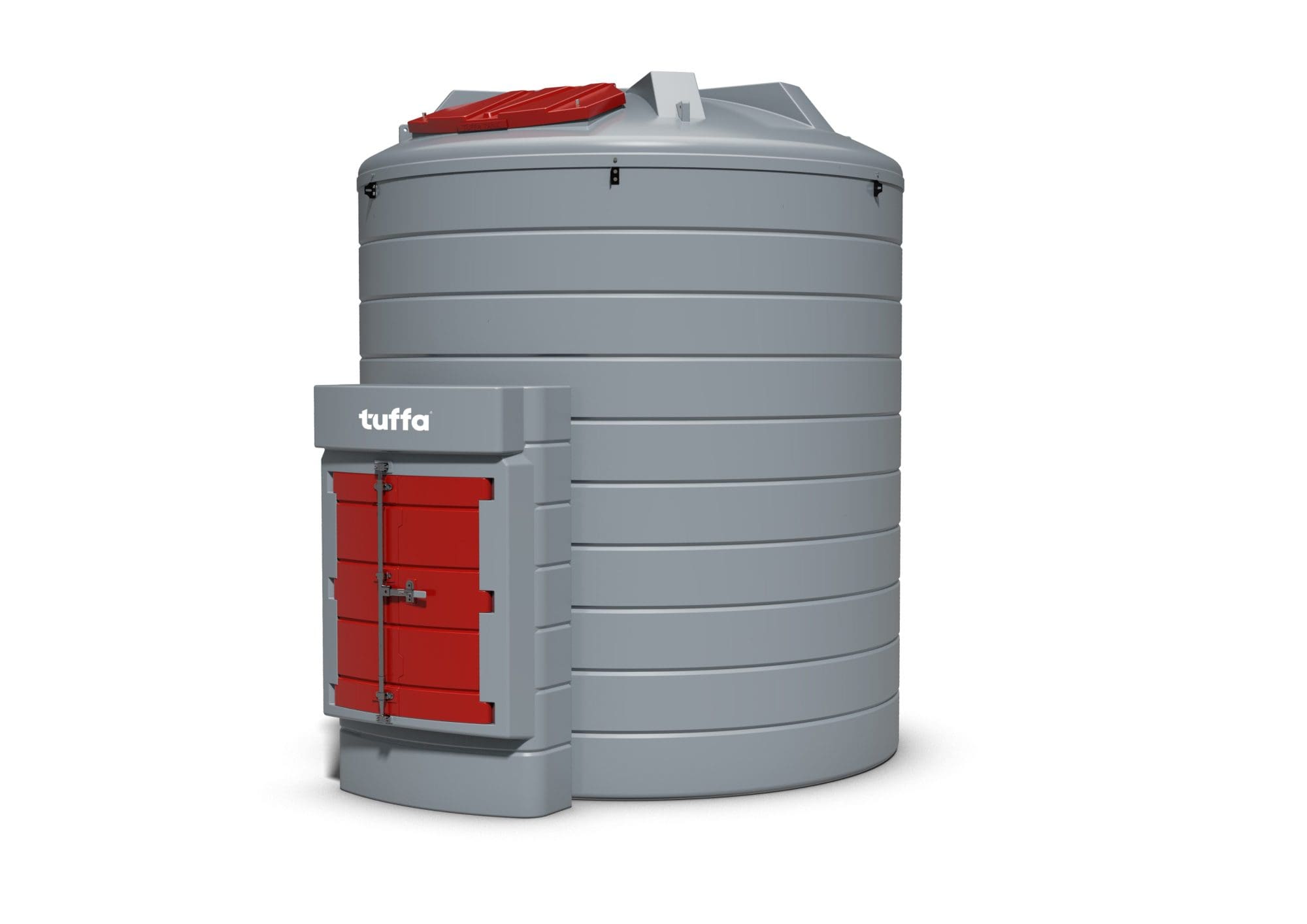

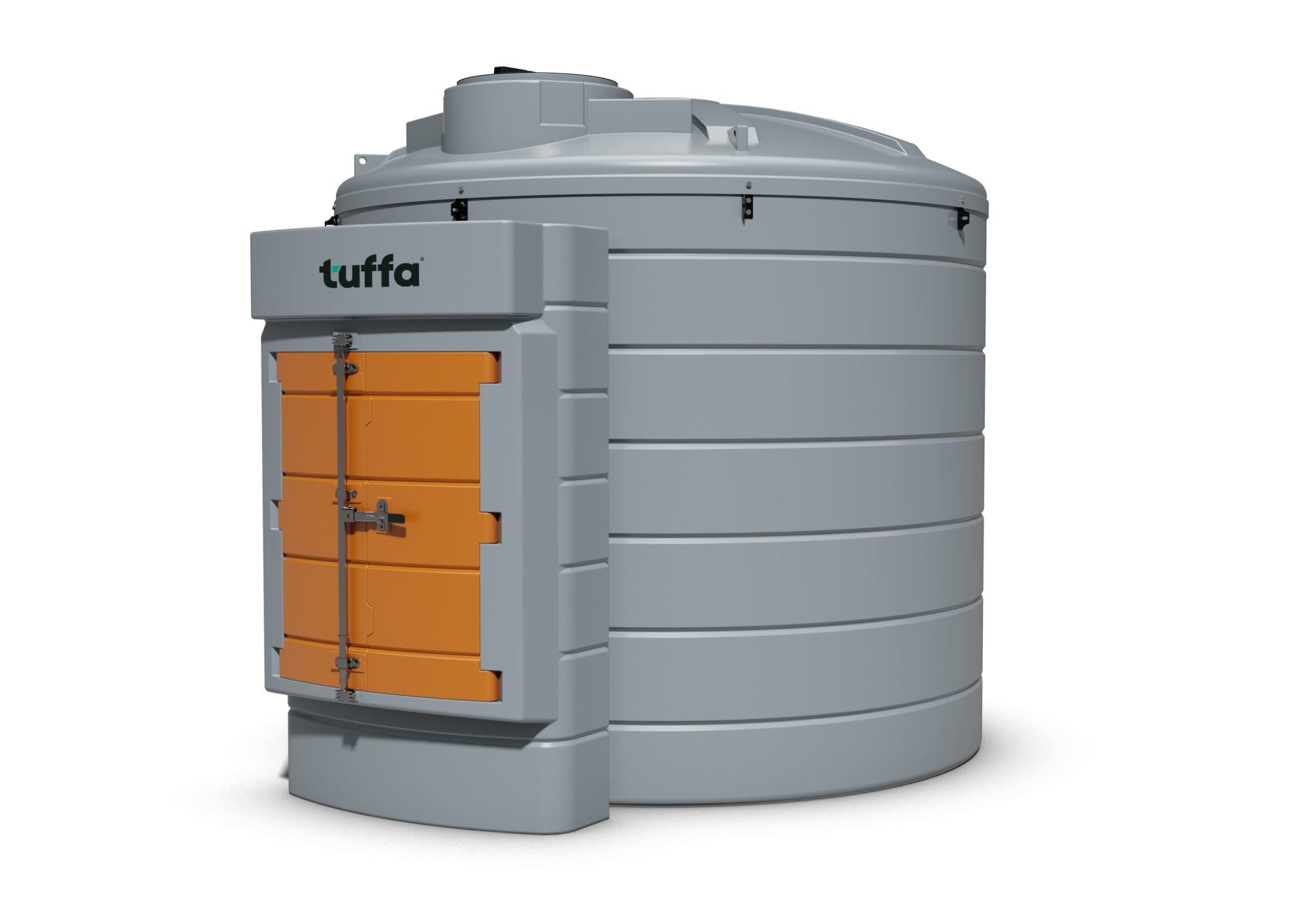

15000 Litre Plastic Bunded Diesel Tank

Presenting one of our flagship products, the 15,000-litre plastic bunded diesel tank – a standout as one of the largest in the UK.

This tank can be seamlessly interlinked, creating an impressive effective capacity of 30,000 litres.

It delivers the remarkable capacity of steel tanks while maintaining a lower cost, making it the optimal choice for efficient and cost-effective diesel storage solutions.

Options*

add to quote

add to favourites

Up to 10 Year Warranty

15000 Litre Plastic Bunded Diesel Tank Dimensions

Capacity (Ltrs) 15000
Diameter (mm) 2890
Height (mm) 3500
HVO Compatible Yes
Material Plastic

specification

External pump 230V
6m of delivery hose
Automatic shut-off nozzle
K33 mechanical flowmeter
Nozzle holster
Control panel with key switch 230V
2″ BSP fill connection with cap and chain
Overfill prevention valve
Vent
FMS gauge and alarm 230V
10-micron water and particulate filtration

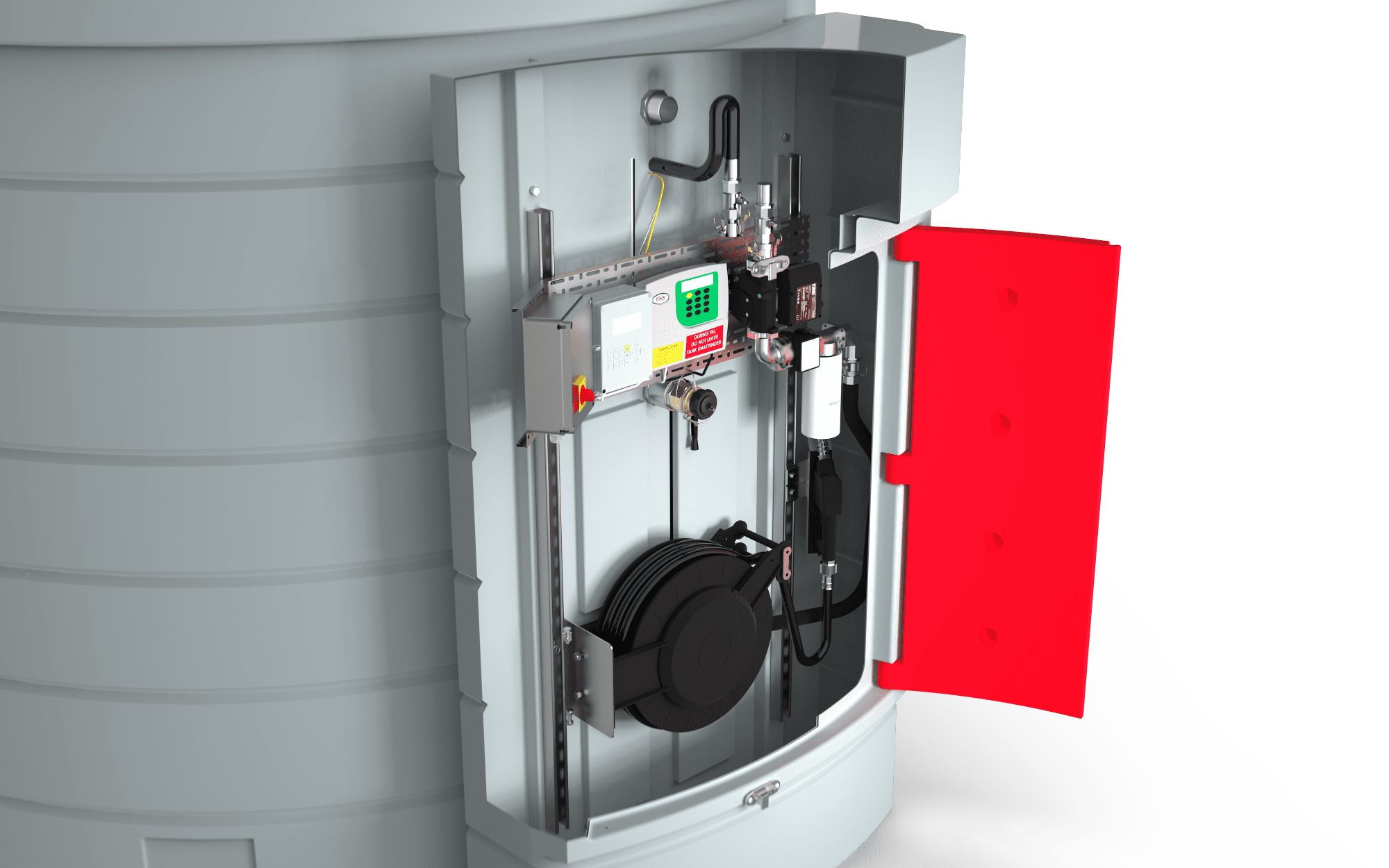

Lockable cabinet

key benefits

Forecourt-style dispensing and convenience
Manufactured to prolong the usable life of diesel
Fitted with premium ancillary equipment
Bunded in accordance with Oil Storage Regulations
Made from an extremely durable, UV-stabilised, corrosion-resistant and recyclable polyethylene
A range of optional extras are available to customise the tank for your site requirements
Lockable cabinet prevents theft
Serviceable lifespan over 20 years
10-year warranty when registered
Compatible with HVO fuel and HVO diesel blends

options

K44 pulsed outlet flowmeter – allows connection to a separate fuel management system.
Hose reel – a self-retracting hose reel with a 10m delivery hose.
Pump options – higher flow rate pumps available.
Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment.

product pdfs

additional information

Crafted through rotomolding in UV-stabilised, seamless, and corrosion-resistant polymer, our tank features a secondary containment (bund) capable of holding at least 110% of the primary tank’s contents. This design significantly minimises the risk of leaks and spills, aligning with stringent environmental safeguards and complying with oil storage regulations across the UK.

Our 15,000-litre plastic bunded diesel tank boasts a lockable cabinet housing tier-one ancillary equipment. With a 10-year warranty upon registration and a 20-year design life under proper installation, usage, and maintenance, it stands as the ideal choice for agricultural, commercial, or industrial applications.

Versatile and accommodating, this tank is compatible with white or red diesel and HVO100 or HVO diesel blends.

For those seeking further guidance on diesel storage solutions, our expert guide to diesel tanks is readily available. Whether you have specific enquiries about installation, maintenance, or choosing the right tank for your needs, our comprehensive guide is designed to assist you every step of the way. Your peace of mind and informed decision-making are our top priorities, ensuring you have the support needed for a seamless and efficient diesel storage experience.
